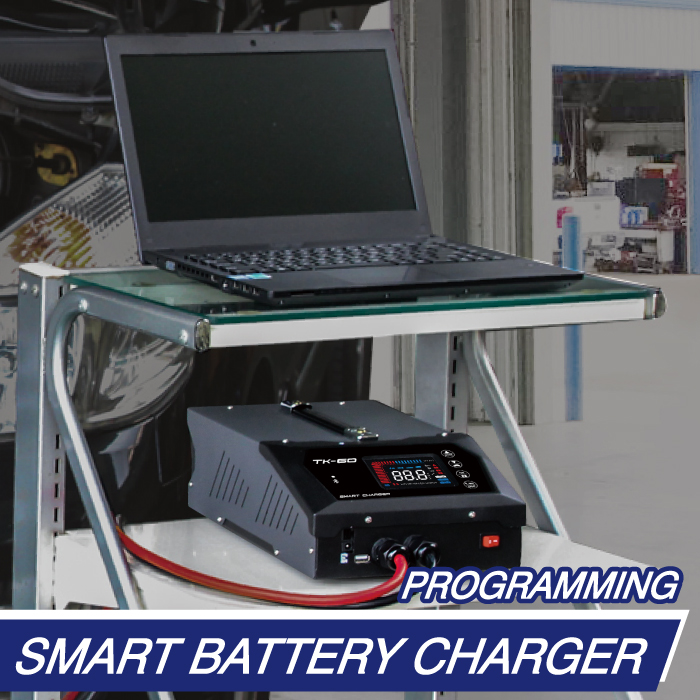

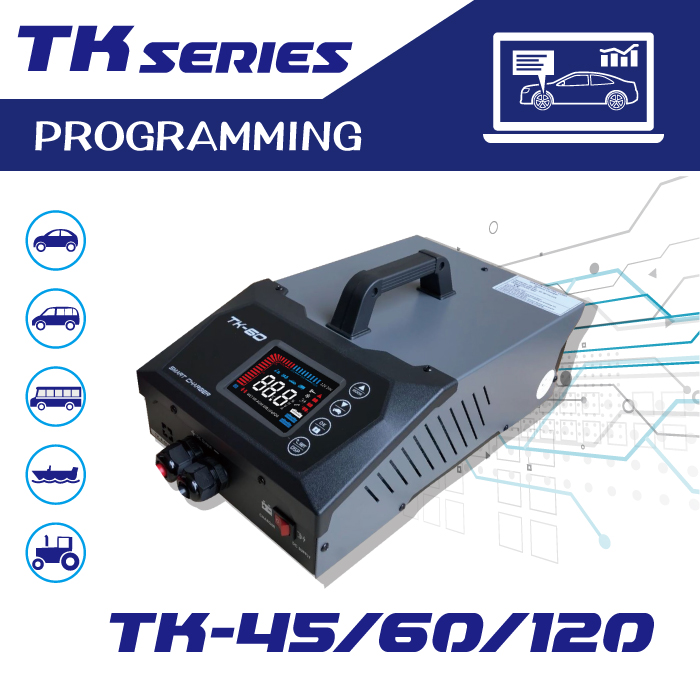

TK-60 Programming Battery Charger
- BatteryWET Battery MF Battery AGM Battery EFB Battery LiFePO4 Battery
- Voltage12V
Description
Product
.jpg)
Specification
| TK-60 | |
|---|---|
| Input Power | AC100V~AC240V 50/60HZ |
| Nominal Voltage | DC 12V |
| Charging Voltage | Normal Mode = max. DC 14.1V~15.5V Snow Mode = max. DC 14.6V~15.7V Boost Mode = max. DC 16.5V LiFePO4 Mode = max. DC 14.6V |
| Charging Current | 10A / 20A / 30A / 60A ( Current Selectable) |
| Protection | 1. Short Circuit Protection 2. Over-temperature Protection 3. Spark Protection 4. Over-charge Protection 5. Over-voltage Protection 6. Reverse Polarity Protection 7. Disconnecting Protection 8. Over-current Protection |
| Dimension ( L x W x H ) | 330 x 206 x 153 mm ± 2 mm |
| Weight | 5.5 kgs |
Panel
.jpg)
User Manual
File Name
Last Updated
Download
Play
Video User Manual【TK-60】Programming Battery Charger
2022/08/12
